BEAM CHAMP®

NOW SELLING

BEAM CHAMP®

Beam Champ® is a next-gen beam rotation system designed to optimize ergonomics and weld positioning while dramatically improving operator safety.

Request A Quote DocumentationService Manual
case study

Challenge

Accessing each side of a heavy steel beam for welding work can be time consuming, cumbersome, and even threaten team member safety. Some rotator solutions have been created by other companies, but they don't address many practical needs like opening for placement and removal of the beam, or holding the beam in place while workers weld or configure the beam. A new approach was needed.

Solution

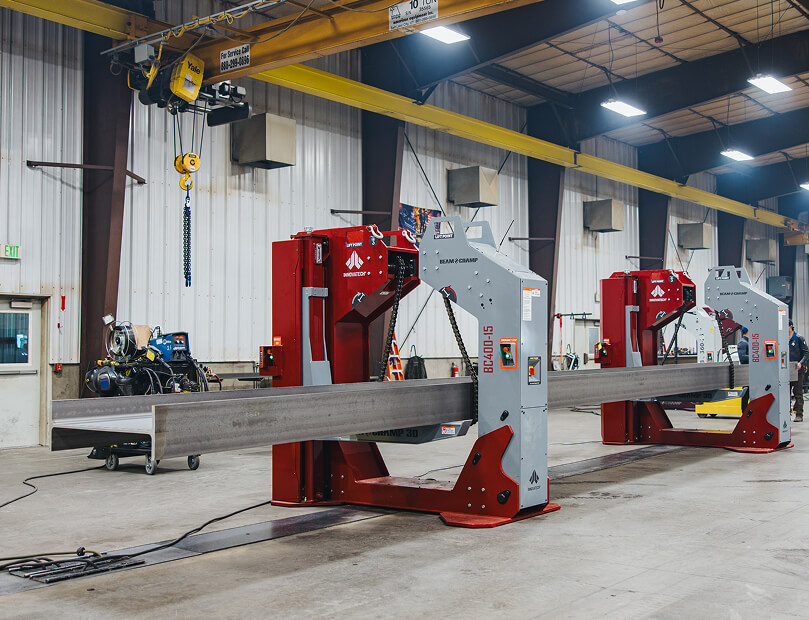

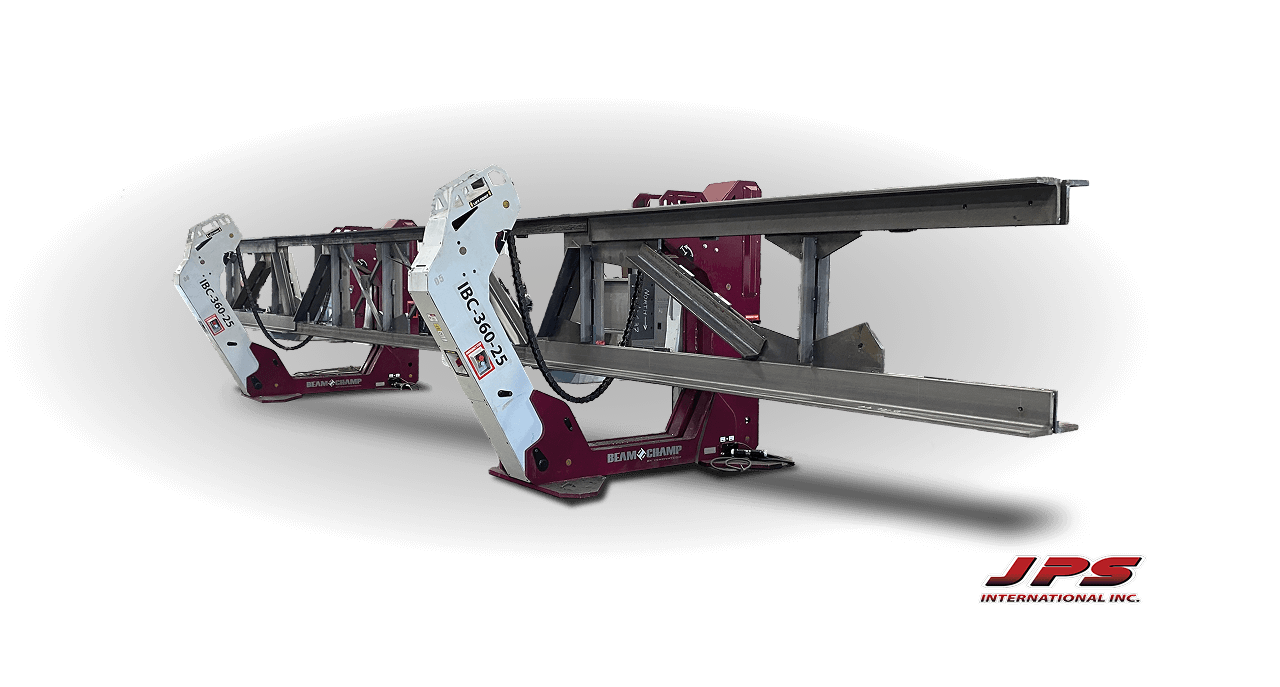

BZI's InnovaTech team created the patent-pending Beam Champ System, where a beam is cradled on a chain and rotated within two or more Beam Champ units as the chain moves. The Beam Champ is designed to eliminate many problems experienced in the use of other branded beam rotators. These improvements include the Vertical Jaw Arm which opens the Beam Champ for the placement or removal of a beam, as well as the Support Arm which holds the beam in place while workers weld or configure the beam.

  • 1
  • 2
  • 3
  • 4
  • 5

Interactive
Gallery
  • Features
  • Specifications

Features

Support Arm – supports weight of beam while beam undergoes welding or other process

Emergency Stop – stops motion of all Beam Champs in set

Rotation Chain – supports the weight of the beam during rotation and rotates the beam

Lift Pockets – provides lift point for moving and positioning

Vertical Jaw Arm – opens “throat” of Beam Champ for placement or removal of beam

Vertical Jaw Arm Fulcrum – provides pivot point on which Jaw Arm swings

Power Switch / Lockout Point – provides power on/off switch and lockout point

Unit Keypad – controls single Beam Champ unit

Communication Link Connection – connects to one or more Beam Champs to create a set

Power Cord – connects to power supply (25 ft mounted cord)

Wireless System Remote Keypad – controls set of Beam Champs simultaneously

Specifications

Length –  Jaws closed (96.5 inches), Jaws opened (120 inches)

Height –  Jaws closed (92 inches), Jaws opened (92 inches)

Width –  Jaws closed (48 inches), Jaws opened (48 inches)

Net Weight –  5700 lbs.

Weight Capacity –  25,000 lbs.
